Virtual Extrusion Laboratory™ Pipe Extrusion

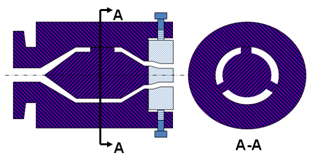

Pipe_Extrusion01The Compuplast®, Virtual Extrusion Laboratory™ for Pipe Extrusion consists of several modules that can be purchased individually, or in combination, to simulate and optimize the various components in a Profile Extrusion Process. The applicable VEL™ Modules are:

  • Material Module
  • Extruder Module
  • Side Fed Die Module
  • Spiral Die Module
  • Cooling Module
  • 2D FEM Module

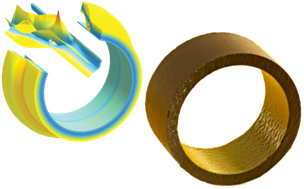

Pipe_Extrusion02The VEL™ for Pipe Extrusion has been developed with the extrusion process engineer in mind. These modules can be used to help :

  • Optimize Die Designs
  • Optimize Flow Channel
  • Optimize Mono or Coex Die Design
  • Optimize Cooling Sections

The versatility and ease of use have truly made the Compuplast™ VEL™ a valuable CAE tool.


Pipe_Extrusion03The Virtual Extrusion Laboratory™ for Pipe Extrusion is also a very useful and powerfulproduct development and process troubleshooting tool. The modules can be used to help:

  • Optimize Material Selection
  • Optimize CoexStructures
  • Troubleshoot Process Problems
  • Minimize Down Time
  • Maximize Production
