Virtual Extrusion Laboratory™ Extruder Module

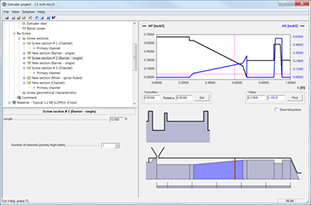

Extruder-Module01The VEL™, Extruder module Extruder module is used for the analysis and design of single screw extruders. The program is capable of simulating the performance of virtually any screw design from relatively simple,compression screws to more elaborate, multi-flighted,screw designs with multiple mixing sections. The module can also simulation vented extruders that are used for materials that require de-gassing or moisture removal.Whether the VEL™ Extruder module is used for the development of new screws or the optimization of existing designs, the user friendly, intuitive, interface allows you to create, test and optimize many designs quickly and efficiently.

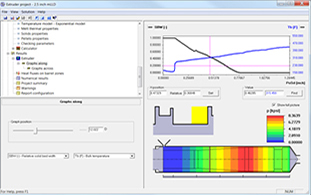

Extruder-Module02The VEL™, Extruder module has been developed with the extrusion process engineer in mind. The program allows the user to build a virtual extruder by defining the barrel length, the number of heating/cooling zones and the screw geometry. Once this has been done, the user can then define a project which specifies the conditions under which the extruder is operated. This makes it very easy to evaluate the performance of a particular extruder/screw combination under a variety of conditions and materials before you even step onto the plant floor. This improves experimental efficiency and greatly reduces the time and cost of product development.

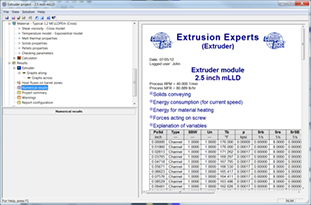

Extruder-Module03The Virtual Extrusion Laboratory™ ,ExtruderModuleFeatures Summary:

  • Improved graphical interface
  • Easy geometry entry
  • Conventional and Barrier screw designs
  • Includes Spiral Fluted and Pineapple mixers
  • Vented section capabality
  • Fast, efficient solver
  • improved image/results saving capability
